5-STATION ROTARY DIE CUTTING MACHINE

Products

Contact Us

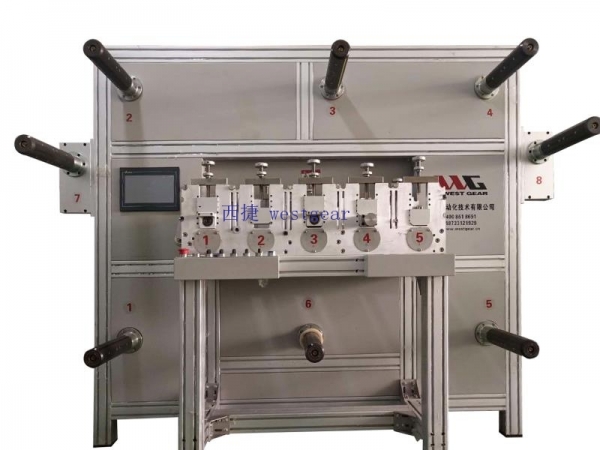

5-station economical rotary die cut machine

Features: 1. the voltage can be applied in a wide range from 380v&220v. Small size (2000*1300*1900mm) for placement. 2. Advanced motion control system makes it easier to operate. The maximum speed is 60m/min. The effective die-cutting width is 270mm. 3. The independent servo system of the tool holder realizes the functions of independent start and stop, forward and reverse rotation, synchronization and asynchronism, proportion and fine adjustment of each station. Independent cutter adjusting device is convenient for selecting the position of cutter shaft. 4. Independent servo system of material shaft is convenient for feeding and discharging, positive and negative rotation and anthropomorphic starting. Material shaft can be selected with constant tension or constant torque, which is convenient for operation. 5. Output alarm, recording sheets and meters, saving materials. Optional automatic registration function, according to the set size registration, up to 0.05 mm. 。


    5-station small round cutter (149,800 yuan) is mainly applicable to: coiled materials, multi-level die cutting, multi-level compound.
    Features:
    1. Wide application range of voltage, 380V & 220V. Small size (2000*1300*1900mm) for easy mounting.
    2. The advanced motion control system makes the operation more convenient. The maximum speed is 60m/min. Effective die cutting width: 270mm.
    3. Independent servo system of knife block can realize the functions of independent start and stop, positive and negative turn, synchronous and asynchronous, proportion and fine adjustment of each station. It is easy to choose the position of the knife shaft.
    4, the material axis independent servo system, easy to receive and release material, positive and negative rotation, anthropomorphic start. The material shaft can choose constant tension or constant torque for easy operation.
    5, output alarm, can record pieces, rice, save material. Optional automatic nesting function, according to the set size of nesting, up to 0.05mm.

    MODEL

    WJX25-5

    Material

    roll

    Material(mm)

    250

    Speed(m/min)

    50

    The number of Workstation

    5

    Weight(t)

    1

    Size

    2000*1300*1900

    Power(mm)

    10
