WX25-8 8 Station Rotary Die Cutting Machine

Products

Contact Us

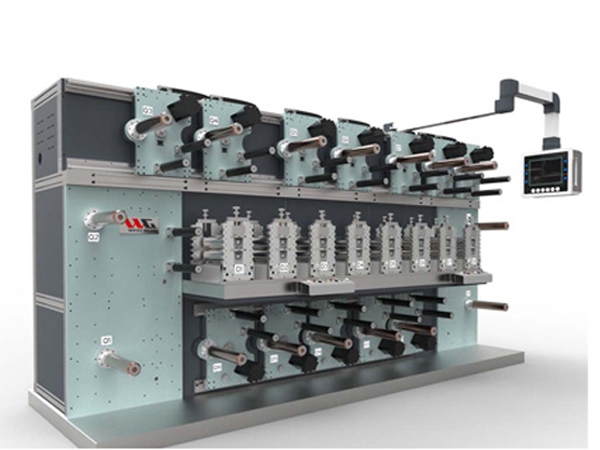

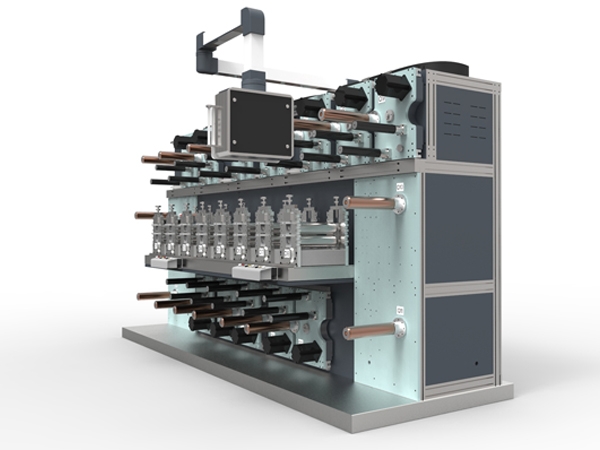

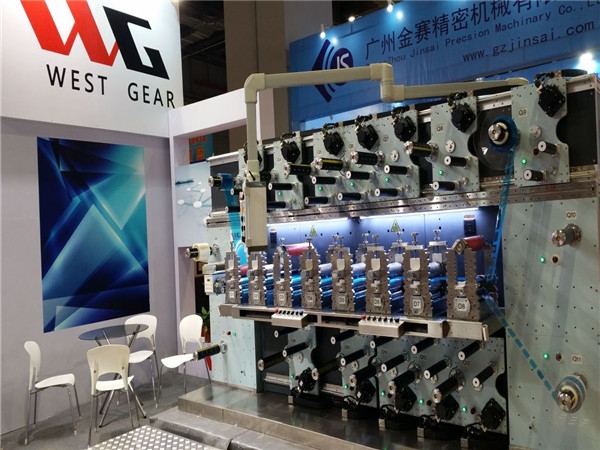

8 station Rotary Die Cutting Machine

In today’s label production, die-cutting in most cases is performed in a rotary process. Compared to flad-bed cutting, rotary cutting needs less pre-tension. The material web can be processed continuously and at high speeds. Flexible dies which are put on magnetic cylinders have been established as a standard tool.
    Features:
    1. The dual systems of one machine enable two different products to be manufactured simultaneously.
    2. The processes run independently. The cutter shaft can be arbitrarily combined to improve the utilization ratio of the equipment.
    3.  Advanced motion control system allows easier operations than before.
    4.  Max speed 60m/min.
    5.  Effective die cutting width 250mm
    6. The independent servo system of the cutter seat keeps the functions of independent start and stop, positive and negative rotation, synchronous asynchronous operation, island placement fine adjustment for saving cost.
    7. Checking function- equipped with automatic deviation correction and convenient operation
    8. Independent cutter setting device makes the location of cutter shaft easy.
    9. Output alarm, record by piece or meter helps materials saving.
    10. Make operation easy, the constant tension or constant torque mode can be set for the feed shaft.
    11. Fault alarm and automatic stop for refueling when running out of material. This function can reduce labor intensity, waste and save materials.
    12. Each shaft can be operated independently. The start and stop, positive and negative rotation can be easily handled with one key operation.
    13. Multi-block-cutting can be realized by the asynchronous operation.
    14. Optional automatic alignment function with setting parameter (max 0.01mm)
    15. Fixed length cutting function can realize the cutting at set point, evenly spaced arrangement of productions, breakpoints reduction, and material utilization improvement.
    16. An optional anti-electrostatic function can reduce the static electricity and dust, which improve product quality.
    17. Optional security function can achieve automatic shutdown to protect the personnel safety.
    18. Innovative die-cut systems utilize continuous rolls of material for high-speed converting and greater productivity.

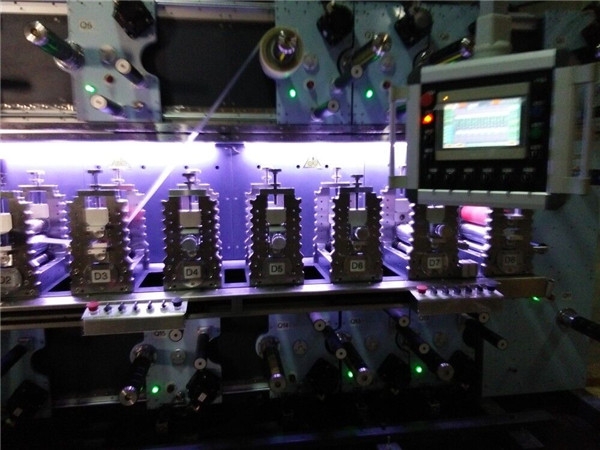

    19. HMI 10” Touch Screen Panel with 2 separated rail mounted consoles for easy operator access.
    20. Store all process parameters for easy download, upload, easy recall for repeat production and transferring.
    Model WX25-8
    Processed material type Roll materials/Coiled materials
    Cutting Width(mm) 250(150/350 as requested)
    Speed(m/min) 60
    Number of work station 16
    Net weight(t) 4.5
    Maximum diameter of possessed material 450mm when neighbouring rollers are spared
    750mm when neighbouring rollers are loaded
    Size(mm) 4600*1400*2200
    Power(kw) 24
    Material shafts 16
    voltage 220V/380V
    Hardware PLC& Touch Screen Panel/Servo Driver/Auto Deviation System exported famous brand
